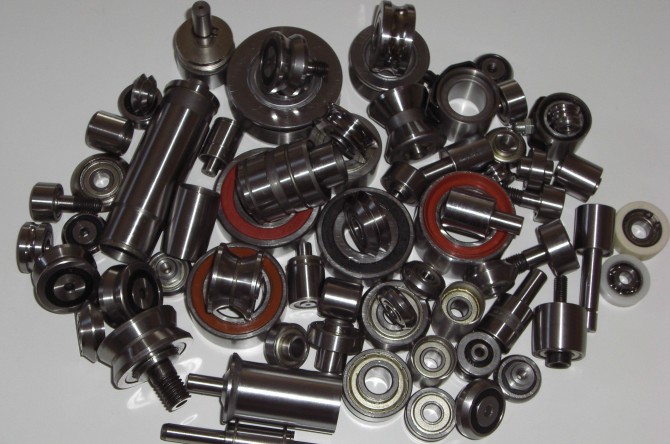

The wheels and bearings shown in the pictures were made for various applications, especially for linear field, for textile machines, woodworking machines, sliding doors, etc..
All bearings are made of chrome steel for bearings DIN 100Cr6 but can also be made of stainless steel (AISI 440C).
The size range start from a minimum diameter of the inner hole of 2 mm to a maximum outer diameter of 100 mm
Many bearings are double row bearings, and in some cases, with angular contact between the raceways and balls (especially on wheels for linear guides).
Some products are designed to reduce assembly costs, in particular, we study solutions which provide an integrated threaded pin (inner ring) or threaded hole on the inner ring for easier mounting.
Different accuracy classes are realizable P0 to P5 with very low level of noise and vibration
The bearings are lubricated with grease suitable for life.
Products are available also operating at low temperature (-50 °) and high temperature (250 °)
The external profile of the wheels can be suitably shaped into desired forms to meet customer needs.
The outer ring of the bearing may be coated with thermoplastic materials (Nylon, POM, etc.)..
The shields can be made of metal (ZZ) or rubber seals in nitrile (2RS).
